| Article no. | Version | Output | Total length | Drive | Output size | ||
|---|---|---|---|---|---|---|---|
|
2788-T100H | Camshaft adjuster TORX® screwdriver socket with drilled hole 2788-T100H ∙ Square, hollow 12.5 mm (1/2 inch) ∙ Tamper-resistant TORX® profile ∙ 100 mm | O profile | 100 | j 12,5 = 1/2″ | T100H | |
|
2788-E14 | Camshaft sprocket screw connection specialty tool 2788-E14 ∙ Square, hollow 12.5 mm (1/2 inch) ∙ Outside TORX® profile | e profile | - | j 12,5 = 1/2″ | E14 |

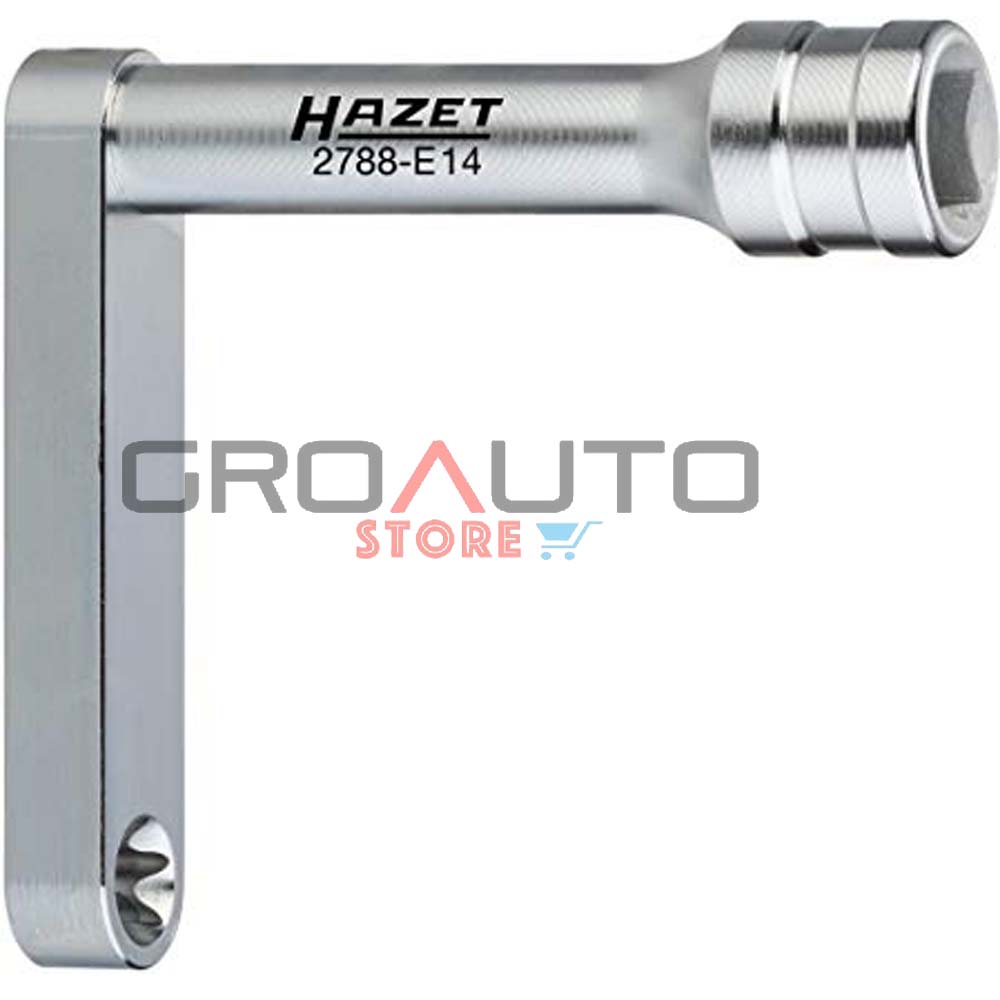

Camshaft sprocket screw connection specialty tool
∙ Square, hollow 12.5 mm (1/2 inch) ∙ Outside TORX® profile-
Article no.:
2788-E14
Product information
Application:
Operation of the camshaft sprocket screw connection on MERCEDES-BENZ
- Work in the tight space in front of bulkhead (for engines installed lengthways)
- With chamfer for easy positioning on screw connection
- Use e.g. when changing the timing chain or replacing the camshaft
- MERCEDES-BENZ:
A-class type 176 ∙ B-class type 246 ∙ C-class type 204 ∙ 205
E-class type 212 ∙ S-class type 221 ∙ 222 ∙ V-class type 639 ∙ 447
CLA type 117 ∙ GLA type X156 ∙ GLK type X204
CLS type C/X218 ∙ ML type 166 ∙ SLK/SLC type 172
GLC type X253 ∙ Sprinter type 906 - Diesel engines:
OM 651 (1.8 and 2.2 l) - Made in Germany
- Wrench size: ∙ E14
- Drive: Square, hollow 12.5 mm (1/2 inch)
- Output: Outside TORX® profile
