| Article no. | Version | Diameter | Total length | ||
|---|---|---|---|---|---|
|
4812N-1S | Semi-flexible probe, 3.9 mm ∅ 4812N-1S | 3.9 mm | 1000 | |
|
4812N-1F | Semi-flexible probe, 3.9 mm ∅ 4812N-1F | 3.9 mm | 1000 | |
|
4812N-1AF | Flexible probe, 6 mm ∅ 4812N-1AF | 6 mm | 1000 | |
|
4812N-1AS | Flexible probe, 6 mm ∅ 4812N-1AS | 6 mm | 1000 | |
|
4812N-5.5 | Flexible probe, 5.5 mm ∅ 4812N-5.5 | 5.5 mm | 1000 | |
|
4812-16 | Probe for video borescope 4812-16 | 4.9 mm | 1000 | |
|
4812-10/4S | Video borescope 4812-10/4S ∙ Number of tools: 4 | - | - | |
|
4812N-10/3AF | Video borescope with new swivelling probe 4812N-10/3AF ∙ Number of tools: 3 | - | - | |
|
4812-30 | Probe adapter 4812-30 | - | - | |
|
4812N-2AF | Probe for video borescope 4812N-2AF | 4.5 mm | - | |
|
4812-20 | Probe adapter 4812-20 | - | - |

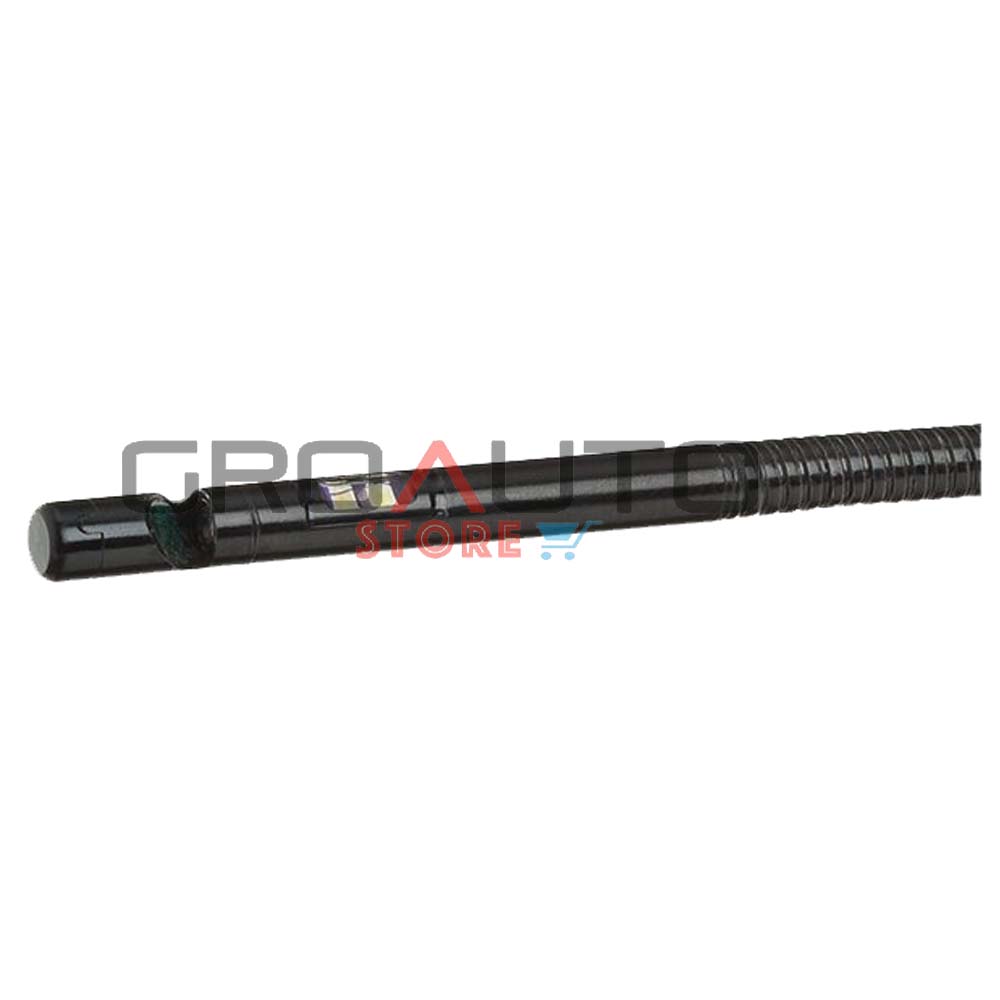

Semi-flexible probe, 3.9 mm ∅
-
Article no.:
4812N-1S
Product information
- 3.9 mm ∅
- Viewing direction of the camera: 90° – permanently installed mirror (Side-View)
sharp image up to the edge of the field - Luminous source: 2 dimmable LEDs in 90° direction
No reflection in the mirror - For probes with new, improved connection (4812 N) to be used in conjunction with the operating panels of the sets 4812-10/4 S ∙ 4812-1/7 ∙ 4812-1/6 ∙ 4812-1/8
- For connection with older operating panels, please use the adapter 4812-30
- Camera resolution: 325 (H) x 250 (v) = 76800 pixels
- Aperture angle of the camera: horizontal 46°, vertical: 34°, diagonal: 56°
- Depth of field: 10 to 60 mm
- Probe length: 1000 mm
- Weight: 220 g
- Total length: 1000 mm
- Diameter: 3.9 mm
- Net weight: 0.11 kg
- Temperature range: 0°C – 55°C
