| Article no. | Version | Length | Air requirement l/min | Handle | Coupler plug | ||
|---|---|---|---|---|---|---|---|
|
9070N-1 | Mini oiler 9070N-1 | - | - | - | - | |
|
9070-10 | Magnetic holder 9070-10 | - | - | - | - | |
|
9070-2 | Maintenance unit 9070-2 | - | - | - | - | |
|
9070-5 | Filter-pressure reducer 9070-5 | - | - | - | - | |
|
9070-7 | Filter-pressure reducer 9070-7 | - | - | - | - | |
|
9070-4 | Maintenance unit 9070-4 | - | - | - | - |

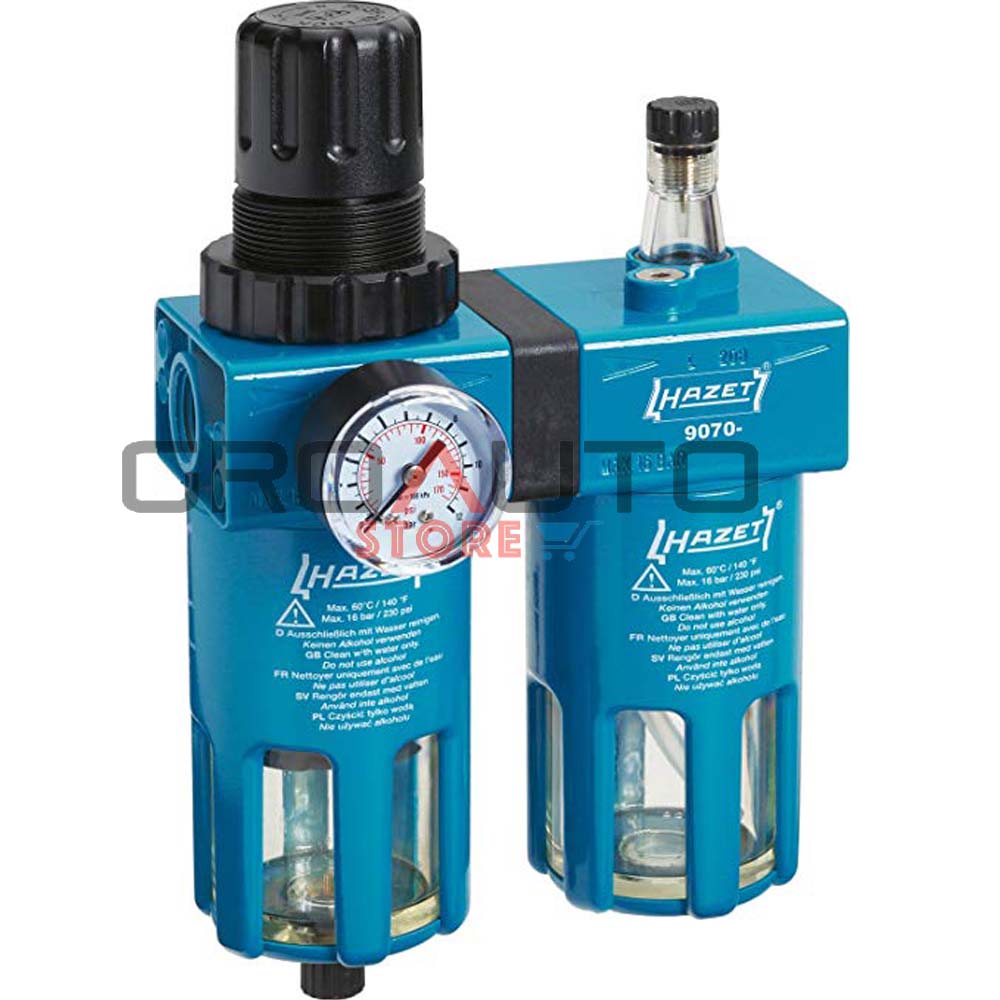

Maintenance unit
-
Article no.:
9070-2
Product information
- Dual, consisting of filter-pressure reducer, oil-mist lubricator and manometer
- Air inlet thread 20.67 mm (1⁄2")
- Air flow at 6.3 bar: 5000 Nl/min
- Capacity of filter-pressure reducer: 50 ml
Capacity of oil-mist lubricator: 170 ml - Connection manometer: 3.2 mm (1/8")
- Max. pressure: 16 bar (1/2" and 3/8") 12 bar (1/4"),
max. working pressure: 12 bar (1/2" and 3/8") 10 bar (1/4") - Pressure indication: 0.5 – 12 bar
- Filter grade: 10 µm
- Recommended lubricant: class F (Sprinter ADVP 22)
- Air connection inlet: Inside thread (IG) 20.67 mm (1/2″)
- Air connection outlet: Inside thread (IG) 20.67 mm (1/2″)
- Net weight: 1.38 kg
- Temperature range: -10°C – 55°C
