| Article no. | Version | Working pressure (bar) | Air inlet thread | Net weight (g) | ||
|---|---|---|---|---|---|---|
|
9000-061 | Safety coupling 9000-061 | - | Inside thread (IG) 16.41 mm (3/8″) | 122 g | |
|
9000-070 | Safety coupling 9000-070 | - | Hose nipple ∅ 10 mm | 129 g | |
|
9000-060 | Safety coupling 9000-060 | - | Inside thread (IG) 12.91 mm (1/4″) | 122 g | |
|
9000-051 | Safety coupling 9000-051 | - | Outside thread (AG) 16.41 mm (3/8″) | 129 g | |
|
9000-050 | Safety coupling 9000-050 | - | Outside thread (AG) 12.91 mm (1/4″) | 129 g | |
|
9000-062 | Safety coupling 9000-062 | - | Inside thread (IG) 20.67 mm (1/2″) | - | |

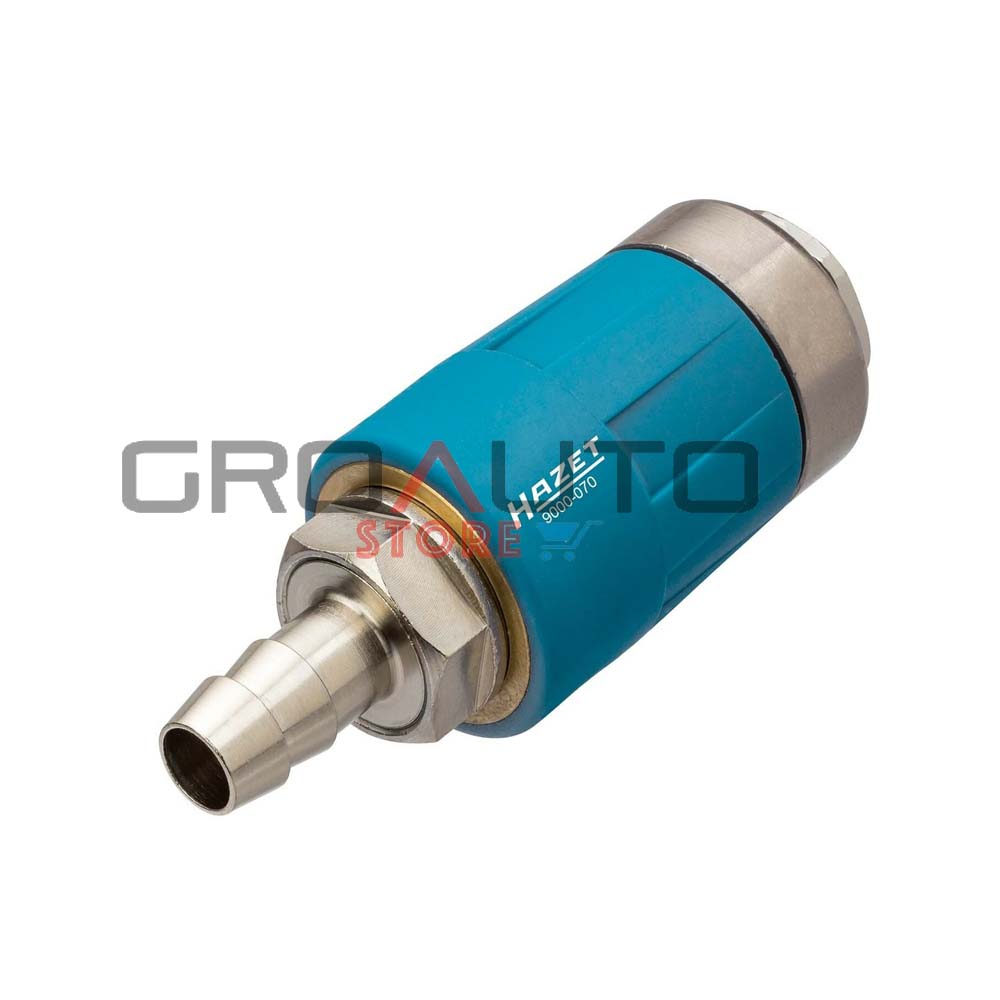

Safety coupling
-
Article no.:
9000-070
Product information
- Suitable for all air connection nipples
(9000-062 only for air connection nipple 10 mm) - Hose nipple: ∅ 10 mm
- Safe disconnection of the connection (unwanted disconnection is excluded)
- No risk of injury from hose impact
- Safety coupling depressurizes the connection before decoupling
- One-hand operation
- Little effort during coupling and decoupling
- Omission of loud popping during coupling process
- Easy operation, even with gloves
- 9000-050 up to 070 brass, nickel-plated
- Air connection inlet: Hose nipple ∅ 10 mm
- Air connection outlet: Coupler bushing for type 1, 2, 3, 4
- Surface: nickel-plated
- Net weight: 0.13 kg
